Raspberry Pi Shield V1 pre-soldered

Sale price€58,00

Compatible with Raspberry Pi 4B, 3B+ and 12V/2A power supply

The Raspberry Pi Shield allows easy control of the scanner via a browser interface. Raspberry Pi cameras, Arducams and external cameras can be used. The software can be adapted to various 2-axis scanner setups.

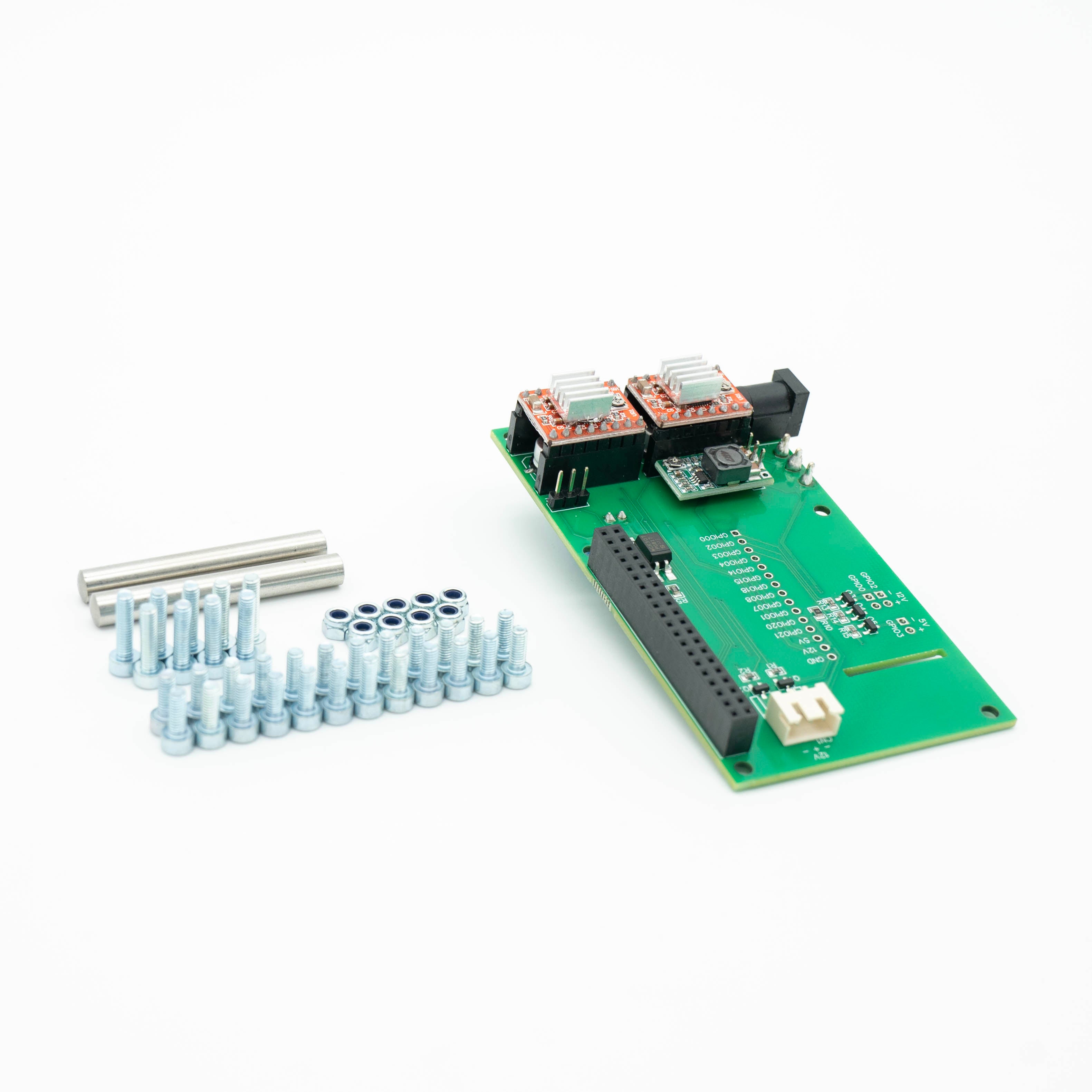

Type "pre-soldered" includes:

  • ready-to-use control unit (without Raspberry Pi)

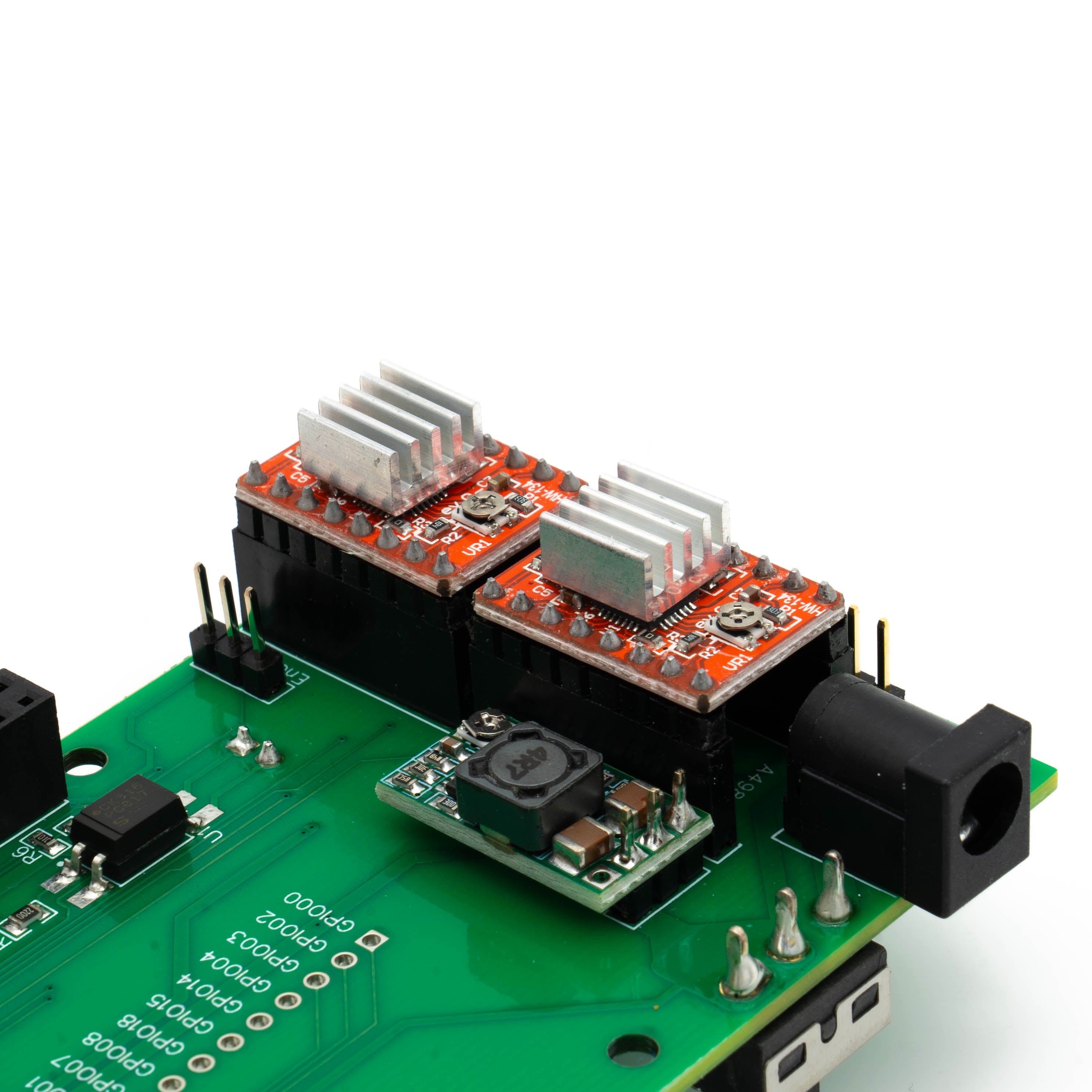

  • 2x stepper motor drivers A4988
  • additional (currently unused) in/outputs for two endstops

Not included in this offer:

  • Raspberry pi
  • 12V/2.5A Power supply
  • Stepper motors

Important notes

The scanners come as a kit, and you will need to build it yourself. This can be done without further knowledge of programming and soldering, and only basic skills are required. You will need a small screwdriver and an Allen key for M3 bolts.

Since we cannot influence further processing and the application of the products, no liability for damages of any kind can be assumed. By purchasing and using this article, you acknowledge that you possess basic knowledge of working with electronic devices and are familiar with the necessary security precautions. Furthermore, it is assumed that you have sufficient skills and basic knowledge in dealing with both active and passive electronic components.
