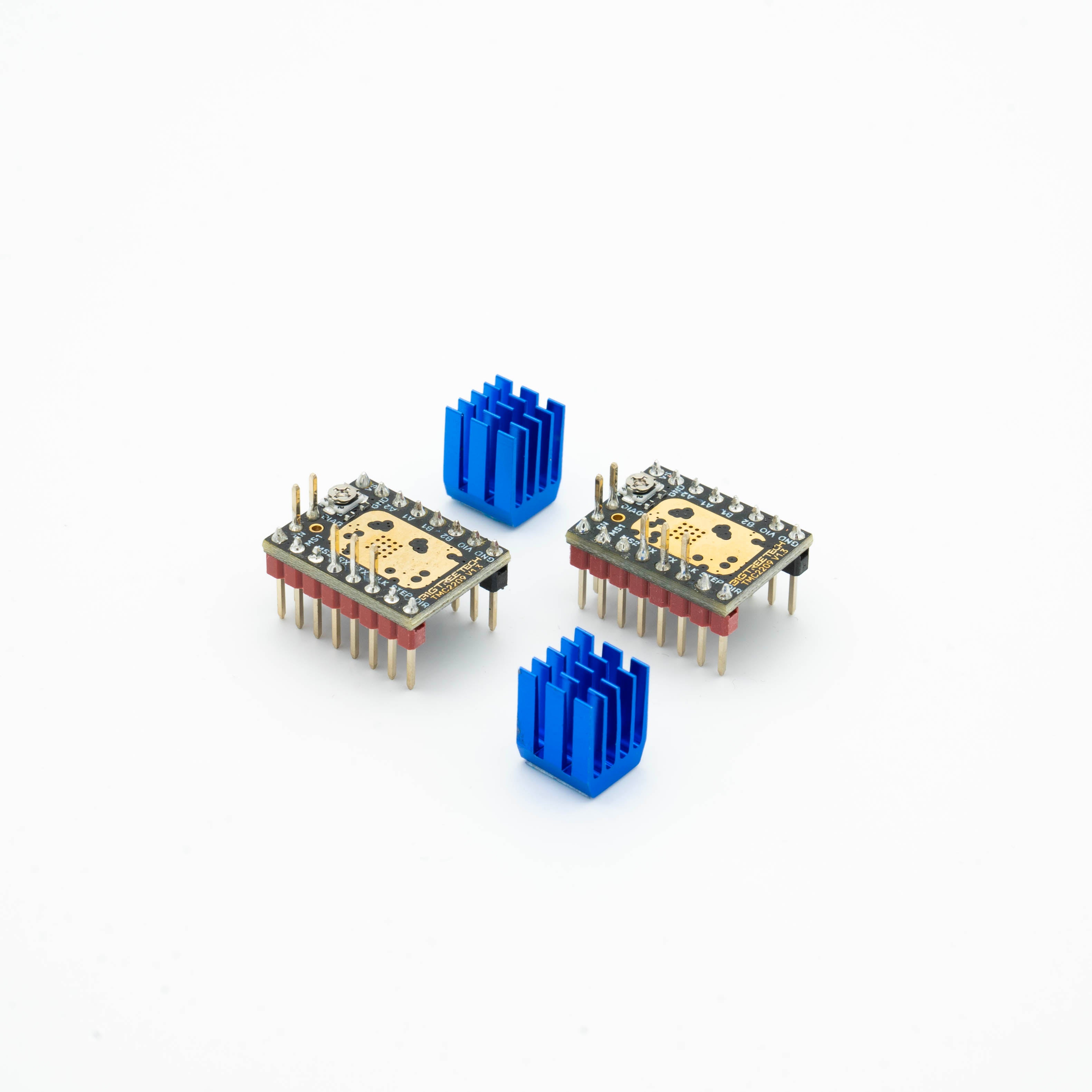

Stepper motor driver TMC2209

Sale price€7,00

NOT compatible with Pi Shield V1
Technical Details:
  • Operating voltage: 4.75 - 28V
  • Logic voltage: 3V - 5V
  • Operating current: up to 2A per phase
  • Steps: up to 1/256 microsteps
  • Configuration via CFG pins and UART
  • interface StealthChop2 mode - very quiet (default setting)
  • SpreadCycle mode - for high dynamics and torque (activatable via UART)
  • Step/Dir interface with microstep function (interpolation of up to 256 microsteps)
  • StallGuard4 - Sensorless detection of motor load
  • CoolStep - Current limitation for efficient operation
